AIRA-C200 Sentry Mist
AIRA-C200 Sentry Mist is an autonomous disinfection robot designed to deliver scheduled, contactless fogging across large indoor environments. Powered by Laser SLAM navigation, it can move precisely through designated areas while Remote Cloud Control enables convenient monitoring and operation. With Auto-Return Charging, the robot can independently return to its charging station when required, supporting continuous deployment with minimal manual intervention.
Ideal for hospitals, airports, transit hubs, offices, and other large facilities, AIRA-C200 Sentry Mist helps streamline routine disinfection and maintain consistent coverage across expansive indoor spaces.
- Details
Specifications
| General | |
| Primary Function | Disinfection (Atomized Spraying) |
| Robot Category | Disinfection Robot |
| Manufacturer | Shenzhen Ruiman (Reeman) Intelligent Equipment |
| Product Number | WBOT11A3 |
| Physical Specifications | |

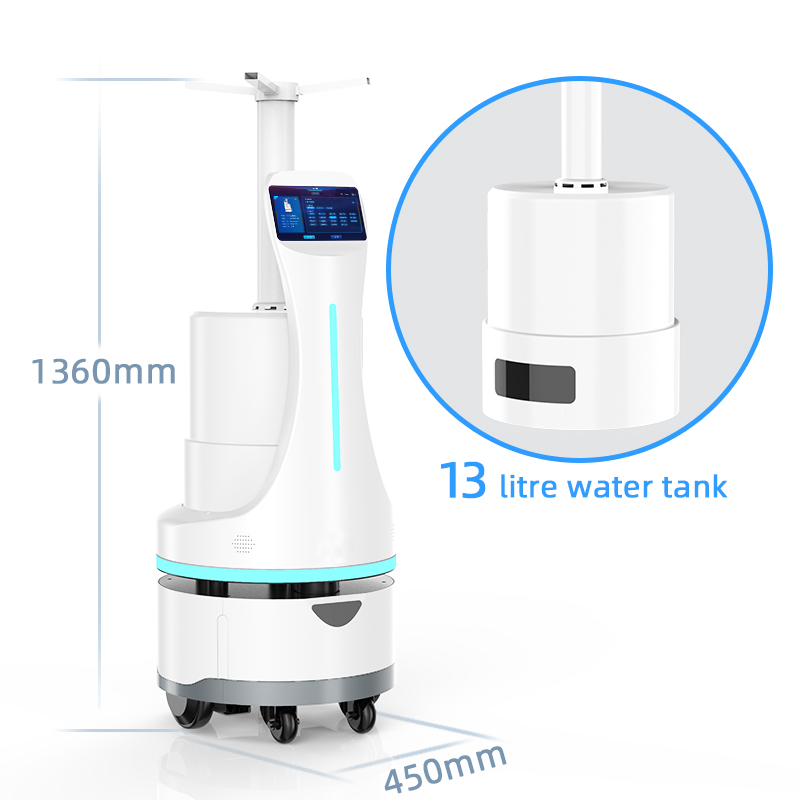

| Dimensions (W×H×L) | 450(L) × 450(W) × 1360(H) mm |
| Net Weight | 41.9 kg |
| Display & Interface | |
| Primary Screen | 7″ IPS touchscreen (16:9, 1024×600) |
| Display Media | Customizable voice prompts / delivery status |
| Computing & Connectivity | |
| CPU | RK3128 (Quad-core Cortex-A7, up to 1.2GHz) + Intel i5-4300U nav computer |
| Memory (RAM + Storage) | 1 GB LPDDR3 + 8 GB NAND (display) / 32 GB SSD (nav computer) |
| Operating System | Android 5.1 (display) + Linux (navigation computer) |
| Network | Dual-band 2.4G/5G Wi-Fi 802.11b/g/n/ac; optional 4G router; optional BT 4.1 |
| Camera | 3D camera (fused with LiDAR) |
| Microphone / Speaker | 4Ω/3W mono speaker |
| I/O Ports | USB 2.0 (Micro), RJ45 Ethernet |
| Navigation & Sensors | |

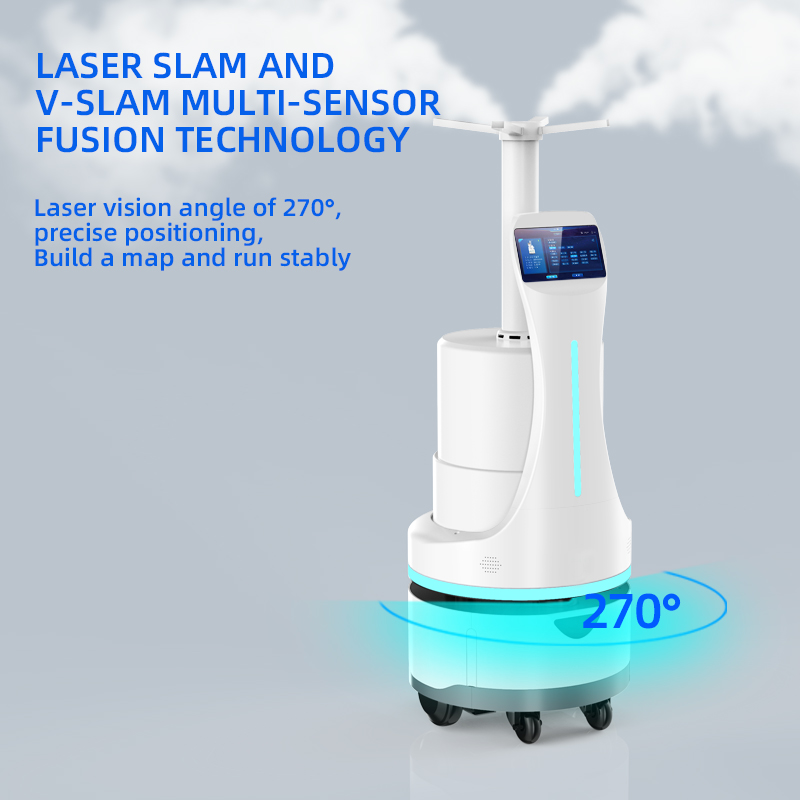

| Navigation System | ROS-based single-line LiDAR (905 nm, 270° FOV) + 9-axis gyro |
| Max Map Coverage | 40000㎡ |

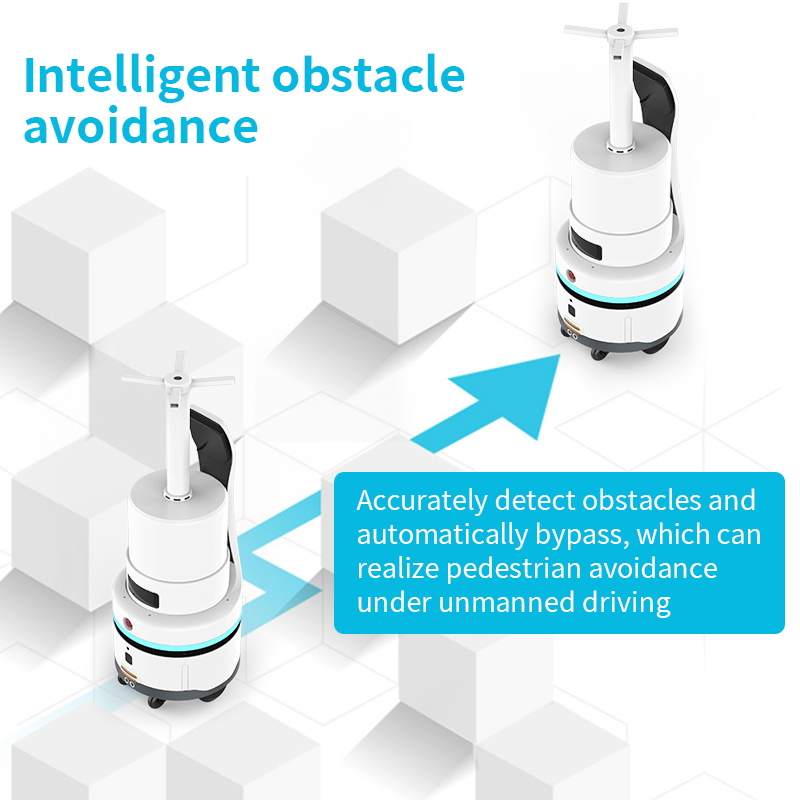

| Obstacle / Safety Sensors | 3D camera anti-fall / step detection; LiDAR obstacle avoidance |
| Movement Speed | 0.1 – 1 m/s |
| Positioning Precision | ±10cm |
| Wheels / Chassis | 5.5″ hub motor |
| Max Climbing Angle | 5° |
| Power | |
| Battery Capacity | 20,800 mAh / 37V (10S8P pack) |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Charging Voltage | Output DC 42V / 5A |
| Charging Time | N/A (auto-recharge or DC direct charge) |
| Operating Time / Life | 5 – 6 hours |
| Noise Level | ≤60dB |
| Functional Capacity | |
| Water Tank Capacity | 13 L (disinfectant reservoir) |
| Disinfection & Atomization | |
| Atomizer Unit | 135 W atomizer (model YX-JS868) |

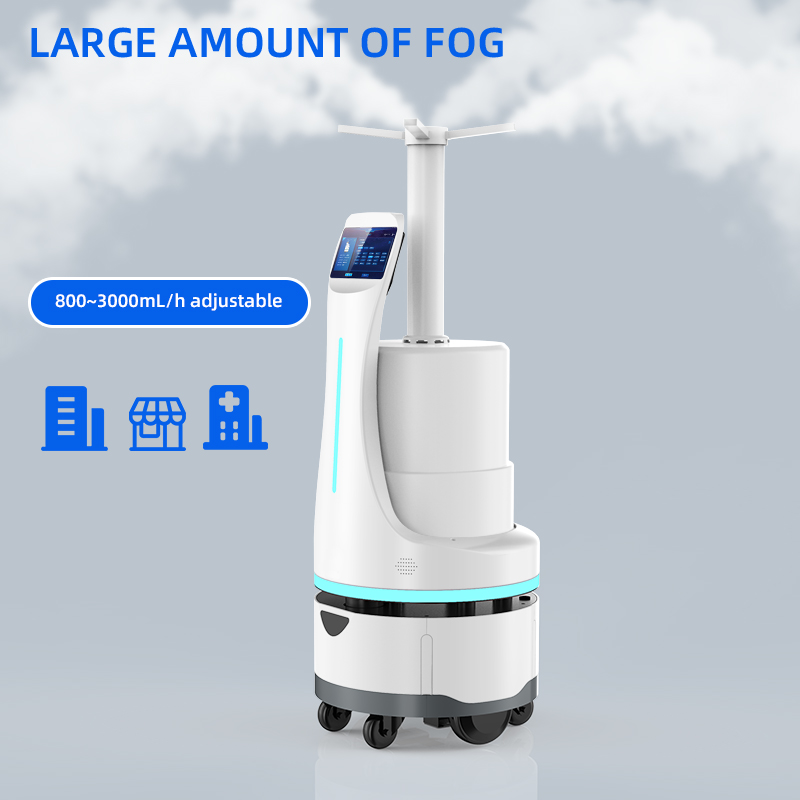

| Atomization Rate | 3,000 mL/h |
| Disinfectant Tank Capacity | 13 L |
| Key Software Features | |
| Indoor Autonomous Navigation | Yes — ROS-based mapping (ground unit) |
| Remote Control (App) | Yes |
| Auto-Recharge / Return | Yes — auto-recharge or direct DC charge |
| Elevator / Access Control | Optional — autonomous elevator call & door/access control |
| Customer Notification | Customizable voice prompts |
| Voice / Interaction Features | Customizable voice prompts |
| Guided Tour / Explanation | According to created mapping |
| Positioning Aids | Code-free positioning (LiDAR + 3D camera, no ceiling markers required) |
| Delivery Modes | Single disinfection, cycle disinfection |
| Central System Integration | Reeman’s dipatch systerm |
| Workstation / Auto-Servicing | Charging pile with overcurrent protection & intelligent power-off |
| Environmental Conditions | |
| Operating Temperature | 5°C – 40°C |
| Humidity Range | 5% – 85% |
| Storage Temperature | -10°C – 50°C |
| Certification & Warranty | |
| Certification | CE |
| Warranty | 1 year |
